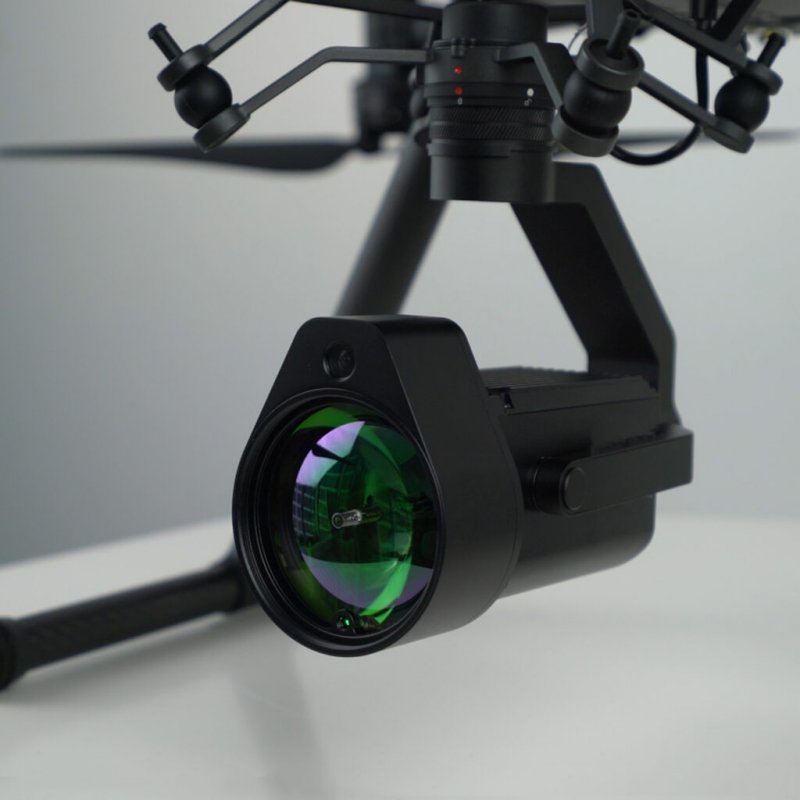

Aerial Inspection Solution Drone Based U10 Remote Laser Methane Leakage Detector
Description:
The U10 remote laser methane leak detection system is operated on drones and is mainly used for transmission and gathering pipeline inspections. It provides reliable inspection results for underground as well as for above ground pipelines.
This remote laser methane leak detector weighs no more than 0.7kg, making it compact, portable, energy-efficient, and durable. The U10 Remote laser methane leak detector is a light-weight, high-sensitivity gas detector based on Tunable Diode Laser Absorption Spectroscopy (TDLAS), which enables rapid identification of methane from up to 150 m away, or at a concentration as low as 5ppm.m. Equipped with 3-axis stable gimbal, U10 remote laser methane leak detector can automatically resist the interference caused by inevitable vibration. Powered by DJI SkyPort, the U10 can be seamlessly integrated with DJI Matrice 350 RTK platforms.
Specifications:
·Gas Detected: Methane
·Detection Distance: Up to 100 meters
·Detection Limit: 5ppm·m (stationary)
·Response Time: 25 milliseconds
·Integration: DJI SkyPort compatible
·Drone Compatibility: DJI Matrice 300 Series, Matrice 400 RTK
·Technology: Tunable Diode Laser Absorption Spectroscopy (TDLAS)
Technical Parameter:
|
Model
|
U10
|
Detection Subject
|
Methane(CH4)
|
|
Measuring Principle
|
Laser Absorption Spectrum
|
Detection Laser Class
|
Class I Eye Safe
|
|
Resolution
|
3 ppm·m
|
Indication Laser Class
|
Class IIIR No direct sight or instrument observation
|
|
Response Time
|
0.025s
|
Operating Temperature
|
-20 ~ 50 ℃
|
|
Maximum Detection Distance
|
150m
|
Operating Humidity
|
< 98%RH, no condensation
|
|
Concentration Range
|
0~50,000 ppm·m
|
Main Unit Dimension
|
174 x 89 x 163 mm
|
|
Compatible with UAV Model
|
DJI M400 / M350 Series
|
Main Unit Weight
|
0.7kg
|
Key Features:
Exceptional Sensitivity:
With its laser-based detection system, the U10 Methane leak Sensor identifies methane concentrations with unparalleled accuracy, even in low concentrations, ensuring early detection of potential leaks.
Real-Time Data Transmission:
Equipped with advanced connectivity options, the U10 methane sensor provides instant data transmission to operators, enabling swift decision-making and immediate response to detected hazards.
Versatile Application:
Whether it's monitoring vast pipeline networks, inspecting industrial facilities, or conducting environmental research, the U10's adaptability makes it suitable for a wide range of applications, ensuring comprehensive coverage and protection.
Ideal Uses:
Natural gas pipeline inspections
Landfill and biogas facility monitoring
Urban utility infrastructure surveys
Emergency response for gas leak detection
Industrial facility safety inspections
